Beschrijving
Description
- Strong flap cutter with extensive adjustment options.
- 6 adjustable milling depths: 0 [8.0 mm] – 10 [10 mm] – 20 [12.3 mm] – S [13 mm] – D [14.7 mm] – MAX [20 mm].
- Maximum durability due to aluminum housing and hardened steel gear drive.

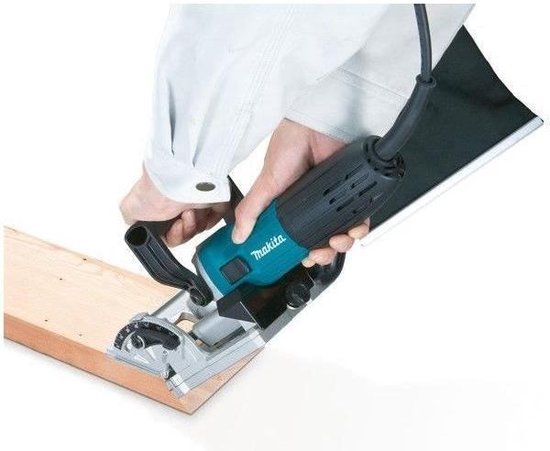

- Also suitable for sawing parquet etc. along the plinth or wall.
- External dust extraction possible.
Technical data:
- Platform: 230 V
- Cutter diameter: 100 mm
- Shaft hole: 22 mm
- Groove width: 4 mm
- Distance from the bottom of the sole to the top of the cutter: 12 mm
- No-load speed: 11000 min-1
- Cable length: 4.0m
- Maximum plunge depth: 20 mm
- Shaft lock: Yes
- Volts (voltage): 230 V
- Power consumption: 701 Watt
- Afm. LxWxH: 302x139x145 mm
- Sound pressure level (LpA): 86 dB(A)
- Uncertainty (K) (LpA): 3 dB(A)
- Sound Power Level (LWA): 97 dB(A)
- Uncertainty (K) (LwA): 3 dB(A)
- Vibration ah milling in MDF: 2.5 m/s²
- Vibration (K) milling in MDF: 1.5 m/s²
- Weight (EPTA): 2.5 kg

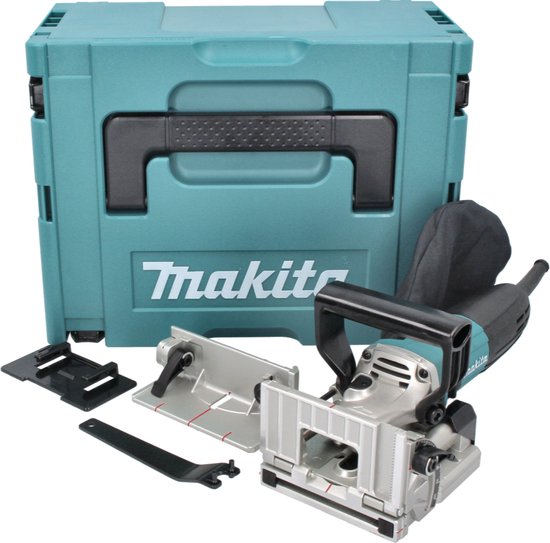

Scope of delivery

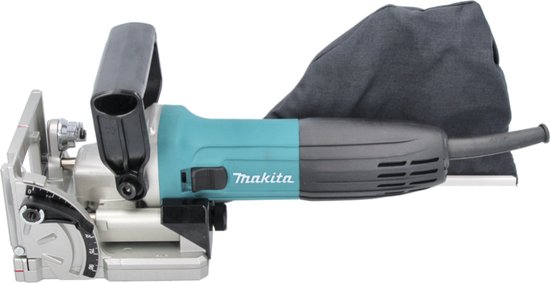

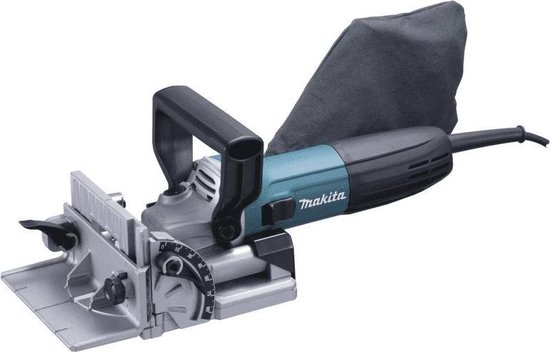

- 1 piece Makita PJ7000 Flap Grinder
- 1 pcs Miter Guide
- 1 pcs Dust bag linen
- 1 pcs Flap cutter HM 100×4,0 6T
- 1 pcs Cam Wrench
- 1 pcs Shim for miter guide
- 1 pcs Extraction adapter 30x25mm

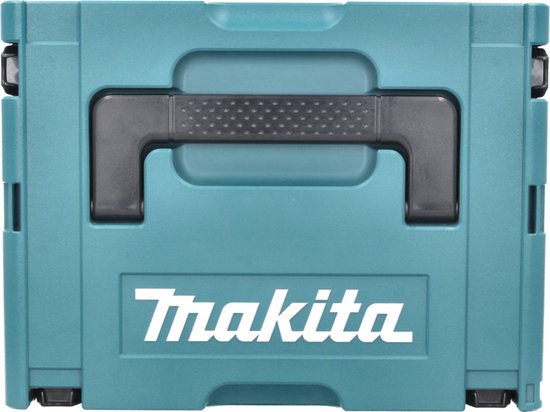

- 1 pcs Mbox
